Integration Guide
1. Overall Process
Any questions you have about the integration process can be directed to Submit Ticket and PayerMax will contact you as soon as possible.
2. Environmental Information
Test Environment：https://
pay-gate-uat.payermax.com/aggregate-pay/api/gateway/<Interface PATH>Production Environment：https://
pay-gate.payermax.com/aggregate-pay/api/gateway/<Interface PATH>
3. Pre-preparation
3.1 Business Negotiation
Through the Contact Us page of PayerMax official website, you can send your intention to cooperate with us, and communicate with our commercial staff in the early stage; determine the mode of cooperation and select the services and products you need to access.
At the same time, PayerMax commercial staff will create a coordination and docking group to carry out technical docking.
3.2 Register as a Developer
Visit the PayerMax Developer Center and register as a developer using your email address.
3.3 Get the merchant number and AppId for the test environment
Log in to PayerMax Developer Center with your registered account information and go to → → , view created test merchant numbers（merchantNo）和appId。
merchantNo and appId are required information for a PayerMax interface request, and the following is a sample interface request which indicates the use of both.
curl --request POST \
--url https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay \
--header 'Accept: application/json' \
--header 'Content-Type: application/json' \
--header 'sign: FPFVT3o227JrFRbqu19boZCpVVTF9KznxyRawUmxpfXilHV/0yK46haPhAjNu1hPUMy7Vw/ILXhfzffNm4Fj0apWknlTY9OJxnSoQxS9BTFtc61tn5yV1q69x/kkBl82/qwg+XTJ4fOzy7Mar3VaC1E2PlDA6RkkKBUyNE6RYgsdB+Su7an4+4HVTNAnoe74WyvBgxTLMNg28igBTdqxaO3w/UBY6ObVp7vkqkQGdL1Y+HgmMYaAVwrM3+ALWGId0sJ+YqTY4WJ+0xCRGhaSnybiIjZsQEYyID68WNUfuavDLDsEhaMm/HfQvf5p0R1Ltovp3wwJnEbQcjY458iX5A==' \
--data '{
"version": "1.4",
"keyVersion": "1",
"requestTime": "2025-05-14T06:29:50.085+00:00",
"appId": "<Your appId>",
"merchantNo": "<Your merchantNo>",
"data": <Request Data JSON>
}'3.4 Configure integration information for the test environment
3.4.1 Configure key information for the test environment
In order to secure network communication, PayerMax uses asymmetric key pairs to countersign and verify communication messages, and the signature uses the SHA256WithRSA signature algorithm. You can check how to generate key pairs and use one of the methods to generate key pairs.

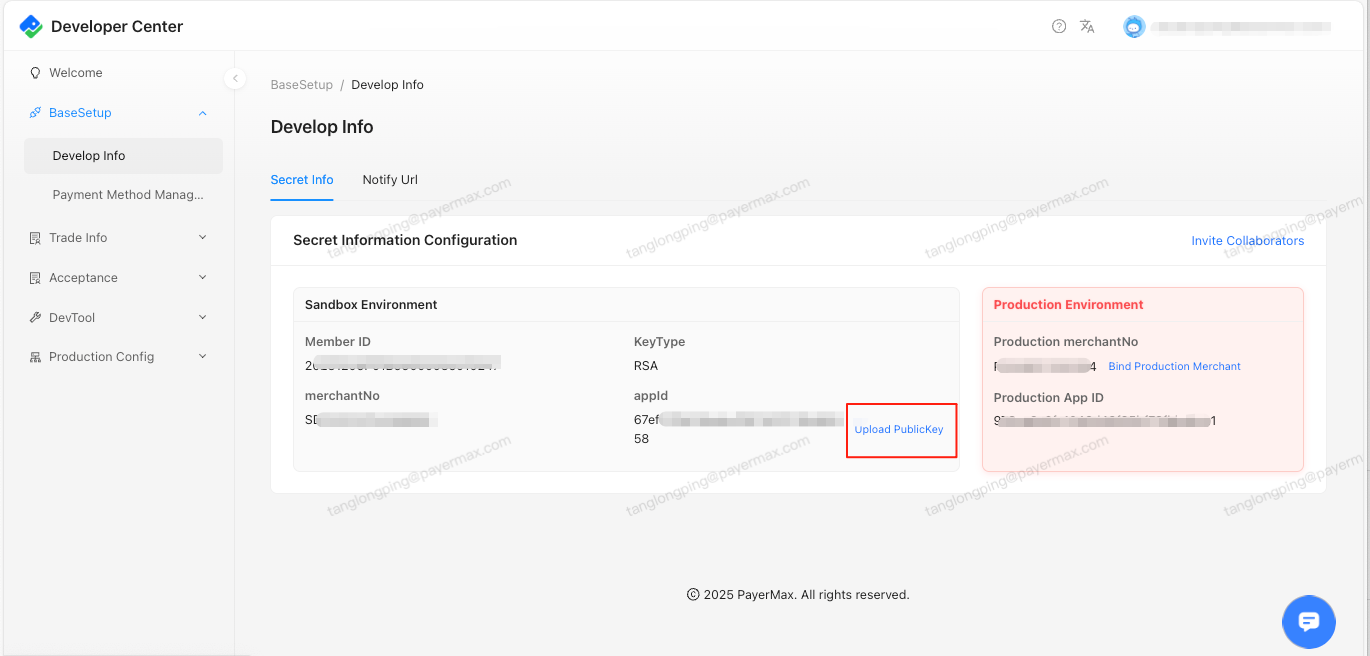

After generating your own key pairs (public and secret), login to PayerMax Developer Center, go to → → , select the created test merchant and click on the, view the PayerMax public key and upload the merchant public key.
Please keep your key information in a safe place. If you accidentally leak your key, please log in to the Developer Center and update your key in a timely manner.
Note:
Keys are differentiated between test and production environments, so when you finish the integration and release it, you need to configure the key for the production environment, see Configure key information for the production environment.
3.4.2 Configure the callback address for the test environment
The callback address is used to receive the results of an order asynchronous callback sent from PayerMax, for example:Payment Result Notification and Notification of refund results.

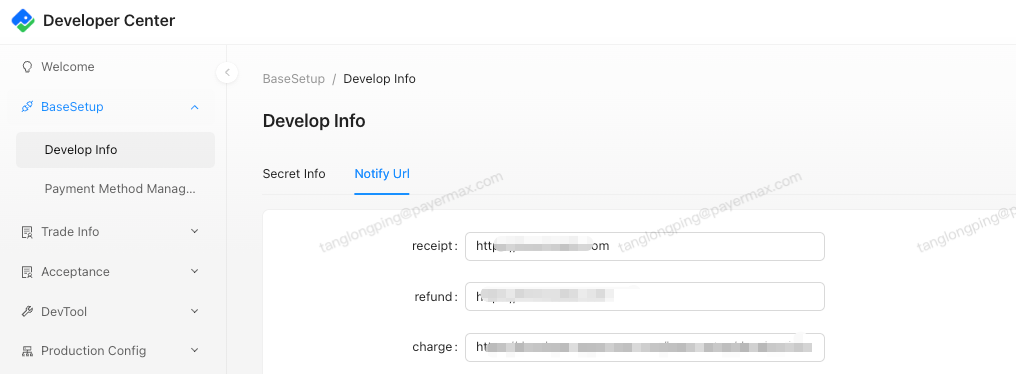

Login to PayerMax Developer Center, go to → → , to set up.
3.5 Setting up a whitelist of server IPs for the test environment
If the network environment of your integration test has a whitelist security restriction on accessing IPs, then please contact PayerMax technical support to get the PayerMax server IP and add it to the whitelist. Otherwise, PayerMax can't launch calls through your callback address normally.
3.6 Open integrated payment methods
Login to PayerMax Developer Center, go to → , you can enable or disable the payment methods available for the current account.
4. Technology Integration
Depending on the merchant's access capabilities, PayerMax provides the following integration documentation.
| PayerMax Products | Integration Docs | ||
| Global Acquiring | Acquiring Basic Products | Cashier Payment | |
| Direct API Payment | |||
| Drop In Payment | |||
| Pay By Link | |||
| Subscription and Auto Debit | Subscription | Cashier Payment | |
| Direct API Payment | |||
| Drop In Payment | |||
| Auto Debit | Cashier Payment | ||
| Direct API Payment | |||
| Drop In Payment | |||
| Global Payout | Global Payout | API Payout | |
| MMC Batch Payout, MMC Single Payout | |||
| Global Collection | Local Bank Collection | Local Bank Collection Process | |
5. Test and Verify
5.1 Check Payment Method Status
Login to PayerMax Developer Center, go to → ，check to see if the payment method you want to test is already enabled. If it is not enabled, you can enable it first and then initiate the test.
5.2 Initiate Connectivity Test
Merchants can first construct a simple request to verify network connectivity and confirm that non-functional configurations such as countersign verification, network whitelisting, etc. have been set up correctly.
5.3 Launching Functionality Test
Once the connectivity test is complete, initiate a success ticket and a failure ticket in the test environment and verify that the request response is as expected.
6. Integration Acceptance
Please complete the following steps on PayerMax Developer Center:
Bind the production line merchantNo: When binding the production line merchantNo on the BaseSetup- Develop Infor page, your email must be that of an operator on the Merchant Platform. For the operation guide of the Merchant Platform, such as adding operators, please refer to the Merchant Platform Introduction.
Test completed: Conduct joint debug testing in the test environment using the merchantNo of the developer center;

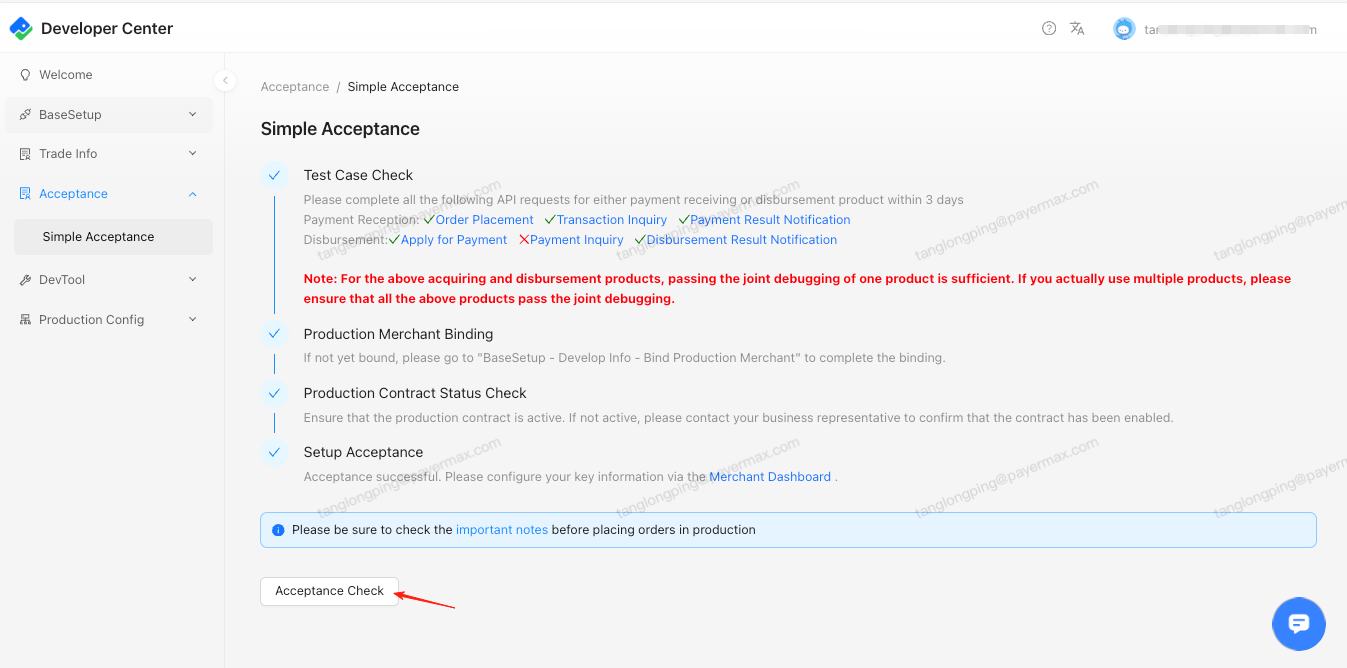

Acceptance: Apply for acceptance inspection under → menu;
Acceptance passed: The production config menu can be seen.
7. Release
7.1 Activate Merchant Platform Accounts
Administrator Account: After both parties confirm the business cooperation, PayerMax Business will bind the administrator’s email. The administrator should pay attention to the activation email sent by PayerMax and follow the instructions in the email to activate the account. The first login will require setting a password, so please ensure the password is secure to prevent leakage.
Operator Account: Can only be added by the administrator. An activation email will be sent after the first addition.
For more details, please refer to the Merchant Platform Introduction.
7.2 Open integrated payment methods
For some payment methods, PayerMax needs to report to the payment channel side instead of the merchant, and the transaction can only be uploaded after the report is approved. While waiting for the report to be approved, the merchant is unable to open volume.

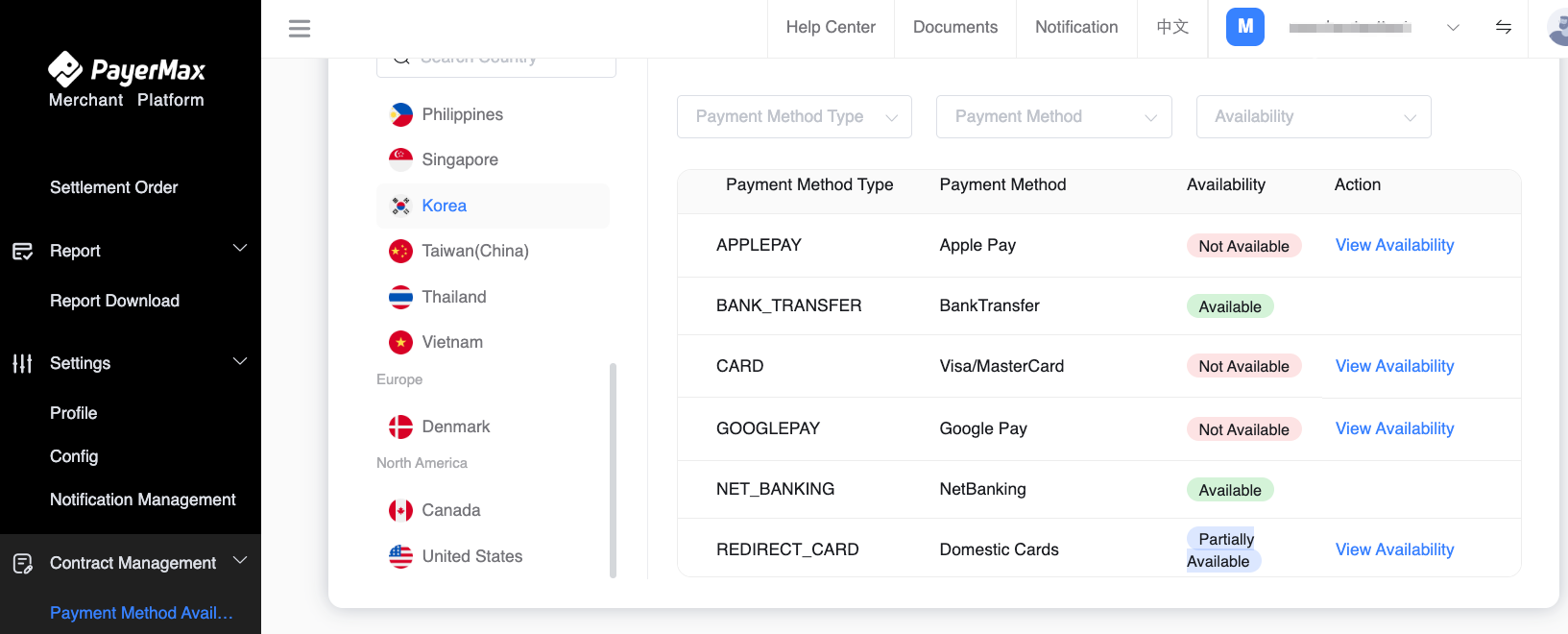

You can login to Merchant Platform to check the availability status of your payment method.
7.3 Configuring integration information for production environments
View the production line merchantNo, production line AppId, and configure the production line merchant public key on the Developer Center → → page;
The production line callback address can be configured under Merchant Platform - Development Parameters or passed in the interface;
Switch the production environment request URL .
7.4 Setting up server IP whitelisting for production environments
If the network environment of your production test has a whitelist security restriction on the access IP, then please contact PayerMax technical support to get the PayerMax server IP and add it to the whitelist. Otherwise, PayerMax can't launch the call through your callback address normally.
Note:
If you are connecting to payout product and the connection method is API payment, please contact PayerMax technical support to apply for the export IP of your company's server to be whitelisted, otherwise the production line order will fail.
