APM - Non-Periodic Auto Debit Integration ​

This document describes the relevant integration steps for non-periodic auto debit, specifically including: binding the payment method, obtaining the result of binding the payment method, initiating the direct debit, and obtaining the direct debit result, etc.

1. Preparation Items ​

According to the guidance in "Configuration and Signature" , obtain the merchant self-service platform account, obtain the merchant appId and secret key, configure the asynchronous notification address, and configure the public key and private key.

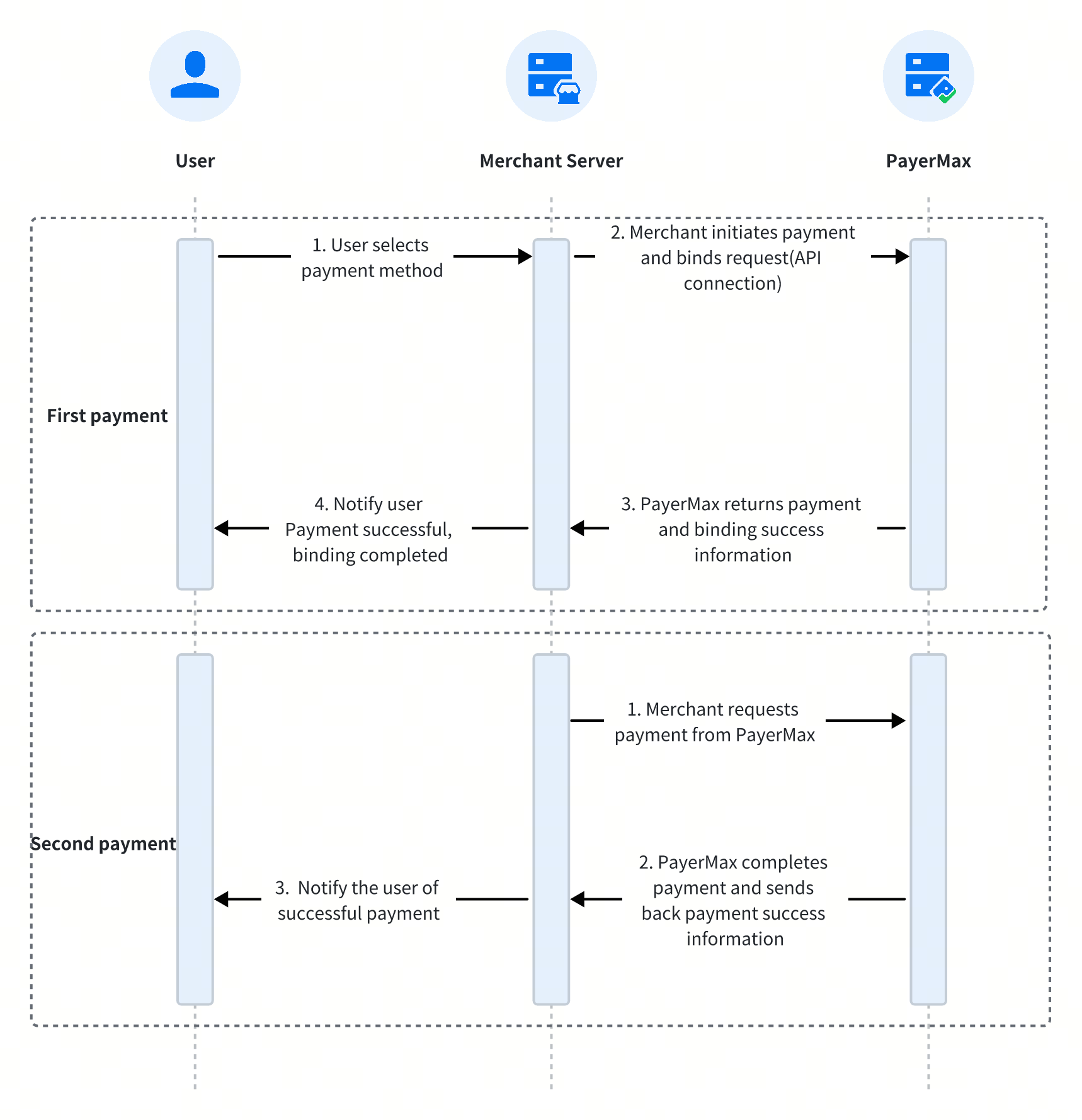

2. Interaction Process ​

3. Auto Debit Rules ​

  • Merchant auto debits can be divided into the first deduction and subsequent direct debits; the first deduction requires the user to bind the payment method, and subsequent direct debits are deductions initiated by the merchant, and the user does not need to participate in the deduction process;

  • For the first deduction, the Payment Cashier mode, API mode, and Pre-component mode are supported for integration; for subsequent deductions, the user does not need to participate, and only the API needs to be used to complete the deduction;

  • For the first deduction, the transaction amount (totalAmount) supports 0 yuan and specific amounts greater than 0 yuan; if the transaction amount is 0 yuan, it means only binding the payment method; if the transaction amount is greater than 0, it means initiating the payment and binding the payment method; after the transaction is successful, PayerMax will generate a token (paymentTokenID) for the user's payment method and notify the merchant, which is used for subsequent direct debits;

  • For subsequent deductions, providing the paymentTokenID to replace the user's payment method can complete the deduction.

4. Binding the Payment Method ​

Core parameter description:

  • totalAmount: The transaction amount, which supports passing 0 or an amount greater than 0;

  • paymentDetail.mitType: The auto debit type, SCHEDULED indicates periodic subscription, and UNSCHEDULED indicates non-periodic auto debit;

  • paymentDetail.tokenForFutureUse: true/false, whether to generate a token for subsequent direct debits; when binding the payment method for the first time, this value should be passed as true;

  • paymentDetail.merchantInitiated: true/false, whether it is a transaction initiated by the merchant; when binding the payment method for the first time, the user needs to participate in completing the authentication or authorization, and the value should be passed as false.

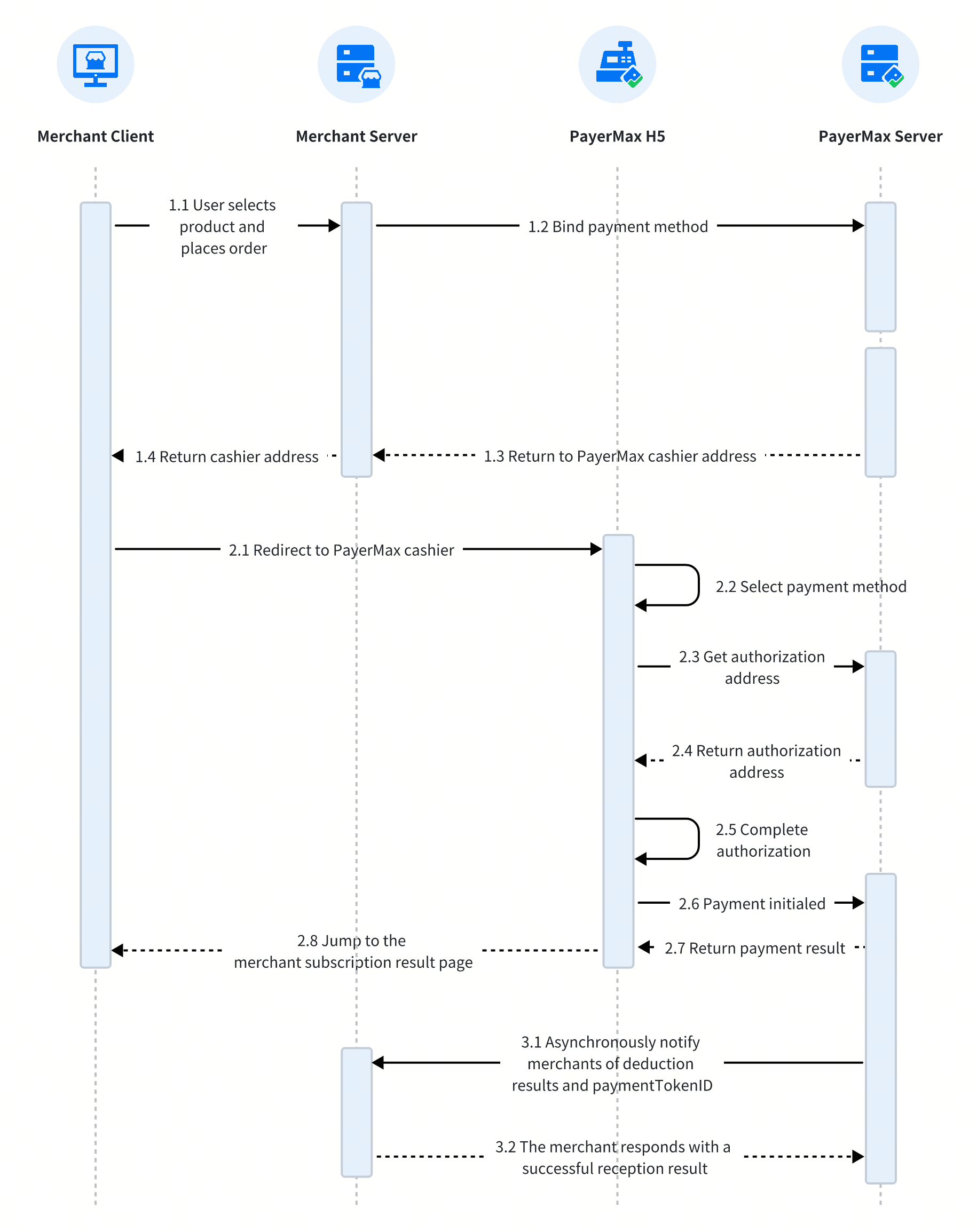

4.1 Binding the Payment Method Using the PayerMax Payment Cashier ​

Note:

The cashier mode binds the payment method to support Full cashier mode, Specify payment method, and Specify payment method + target institution.

For the interface document of binding the payment method in the Checkout mode, please refer to the Checkout - Place Order API. The request addresses for different environments are as follows:

When the full cashier transaction amount is greater than 0, the request parameter example is:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "currency": "USD", // Direct debit currency
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Hosted_Checkout", // Fixed value: Hosted_Checkout
    "expireTime": "1800",
    "paymentDetail": {
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": true, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": false, // Required, false indicates not initiated by the merchant actively (with user participation); true indicates initiated by the merchant actively (no user participation required)
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

When the transaction amount of the specified wallet payment method is greater than 0, the request parameter example is:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "currency": "USD", // Direct debit currency
    "country": "KR", // Required
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Hosted_Checkout", // Fixed value: Hosted_Checkout
    "expireTime": "1800",
    "paymentDetail": {
      "paymentMethodType": "WALLET", // Required, payment method type
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": true, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": false, // Required, false indicates not initiated by the merchant actively (with user participation); true indicates initiated by the merchant actively (no user participation required)
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

When the specified wallet payment method and target institution transaction amount is greater than 0, the request parameter example is:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "currency": "USD", // Direct debit currency
    "country": "KR", // Required
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Hosted_Checkout", // Fixed value: Hosted_Checkout
    "expireTime": "1800",
    "paymentDetail": {
      "paymentMethodType": "WALLET", // Required, payment method type
      "targetOrg": "NAVERPAY", // Target organization
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": true, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": false, // Required, false indicates not initiated by the merchant actively (with user participation); true indicates initiated by the merchant actively (no user participation required)
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

Example of the Response:

json
{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        // PayerMax Checkout address
        "redirectUrl": "https://cashier-n-uat.payermax.com/static/processApiV2.html?tradeToken=T2025042306527802000033&integrate=DIRECT_API&country=UN&payRequestNo=20250423060120EP4366527897000250005&merchantId=010213834784554&merchantAppId=6666c8b036a24579974497c2f9a33333&token=902170aeaadb4621af8d9530398d0efa&orderLan=en&countryLan=en&strategyLan=LUBCO&pmaxLinkV=1",
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "PENDING"
    }
}

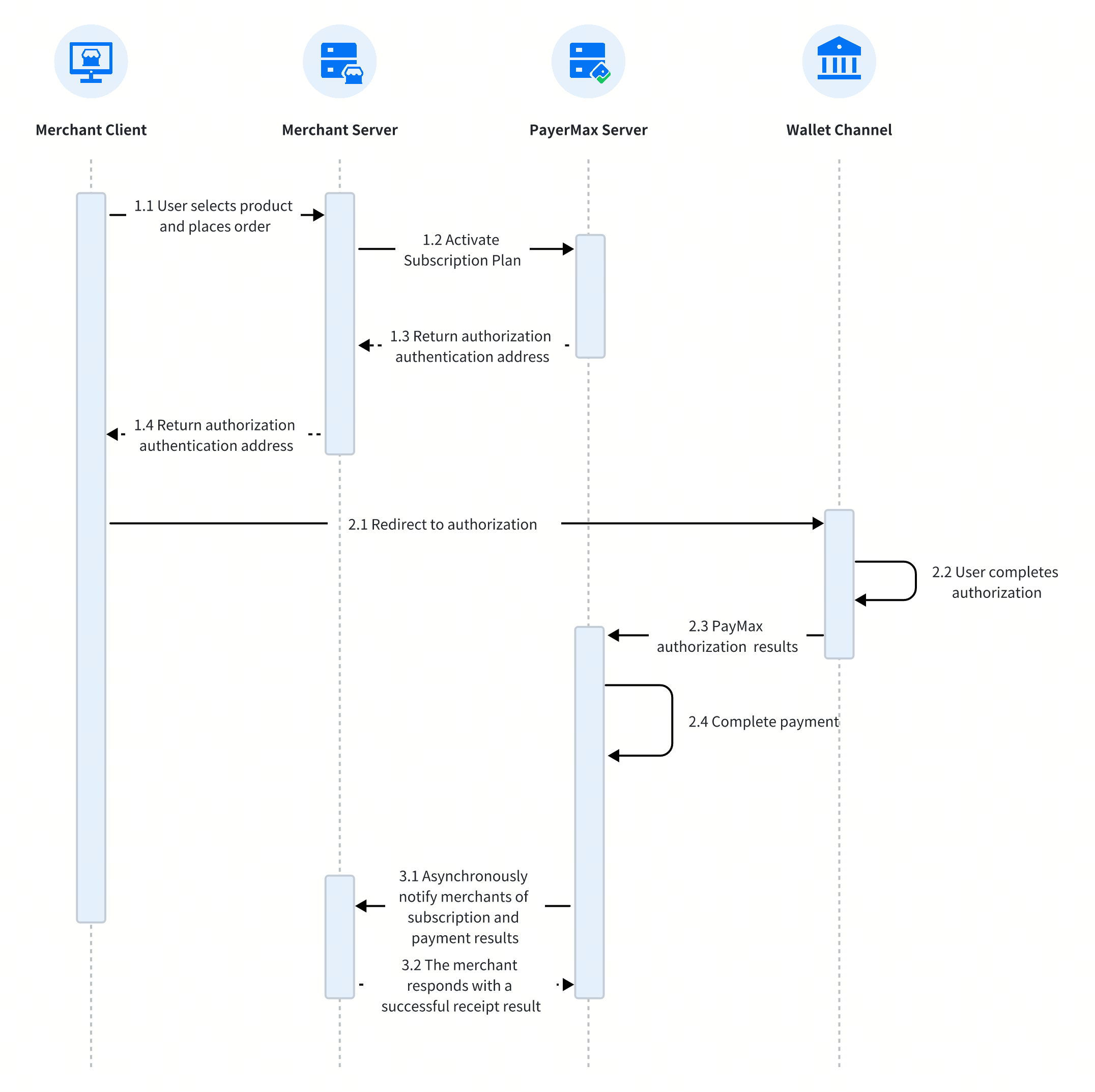

4.2 Binding the Payment Method in Direct API Mode ​

For the API document of binding the payment method in API mode, please refer to the Direct API Payment API. The request addresses for different environments are as follows:

Example of the first debit request parameters for a specified wallet payment method in API mode:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "currency": "USD", // Direct debit currency
    "country": "KR", // Required
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // Fixed value: Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // Terminal type: WEB, WAP or APP
    "osType": "ANDROID", // Operating system type: ANDROID or IOS
    "paymentDetail": {
      "paymentMethodType": "WALLET", // Required, payment method type
      "targetOrg": "NAVERPAY", // Target organization
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": true, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": false // false indicates user parameters are required; true indicates merchant-initiated direct debit without user participation
    }
  }
}

Example of the Response:

json
{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        // Redirect link
        "redirectUrl": "https://cashier-n-uat.payermax.com/static/processApiV2.html?tradeToken=T2025042306527802000033&integrate=DIRECT_API&country=UN&payRequestNo=20250423060120EP4366527897000250005&merchantId=010213834784554&merchantAppId=6666c8b036a24579974497c2f9a33333&token=902170aeaadb4621af8d9530398d0efa&orderLan=en&countryLan=en&strategyLan=LUBCO&pmaxLinkV=1",
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "PENDING"
    }
}

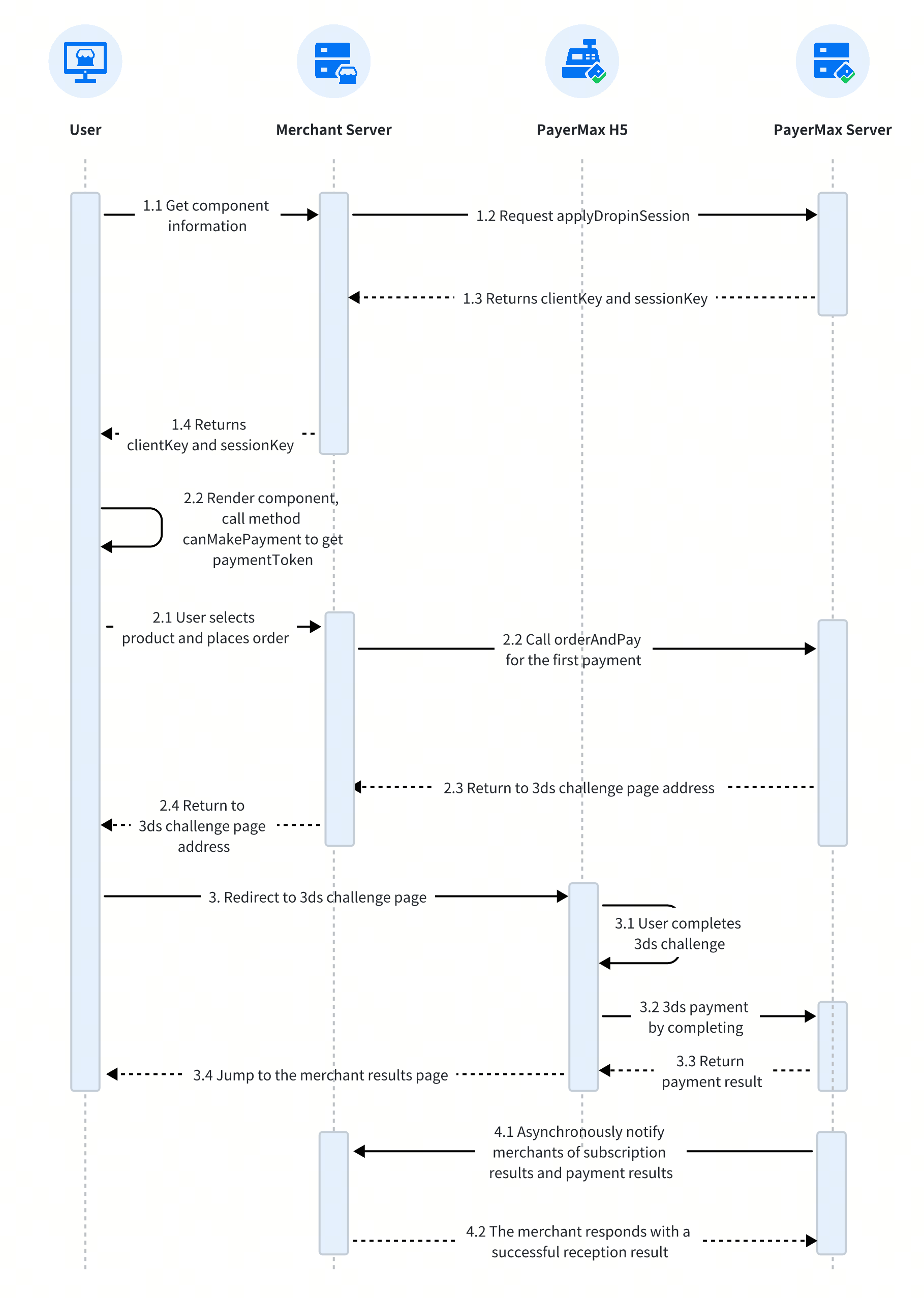

4.3 Binding the Payment Method Using the Front-end Component ​

Note:

The Drop In mode does not support wallet payment methods, only card payment methods are supported to activate subscription plans.

For binding the payment method using the front-end component, the merchant needs to complete the integration through two steps. For details, please refer to: Integration Process.

When binding the payment method using the front-end component, the merchant's server needs to call two API interfaces provided by PayerMax: Apply Drop-in Session API and Front-end Component Payment API. The request addresses of the Apply Drop-in Session interface in different environments are as follows:

Example of Input Parameters for the Apply Drop-in Session Request:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "3b242b56a8b64274bcc37dac281120e3",
  "merchantNo": "020213827212251",
  "data": {
    "totalAmount": "10", // Direct debit amount
    "mitType": "SCHEDULED", // Required, value is SCHEDULED or UNSCHEDULED
    "currency": "USD", // Required
    "country": "SA", // Not required
    "userId": "U10001", // Required, user ID
    "componentList": [ // Required, payment methods supported by the component
      "CARD"
    ]
  }
}

Example of the Response:

json
{
  "code": "APPLY_SUCCESS",
  "msg": "Success.",
  "data": {
    "clientKey": "37114858239eur2384237r810482390",
    "sessionKey": "bdsf8982348974hhf82934bf8239424"
  }
}

The request addresses for different environments of the front-end component Payment interface are as follows:

Example of Request Parameters:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "currency": "USD", // Direct debit currency
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test mit",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // Fixed value: Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // Terminal type: WEB, WAP or APP
    "osType": "ANDROID", // Operating system type: ANDROID or IOS
    "paymentDetail": {
      "paymentToken": "CPT4f200d278f3a454b9e91c81edc641e2b", // Required
      "sessionKey": "bdsf8982348974hhf82934bf8239424", // Required
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": true, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": false, // Required, false indicates not initiated by the merchant actively (with user participation); true indicates initiated by the merchant actively (no user participation required)
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

Example of the Response:

json
{
  "code": "APPLY_SUCCESS",
  "msg": "",
  "data": {
      // 3ds verification address
    "redirectUrl": "https://cashier-n-uat.payermax.com/index.html#/cashier/home?merchantId=020213827212251&merchantAppId=3b242b56a8b64274bcc37dac281120e3&country=ID&tradeToken=TOKEN20220117091121294138752&language=en&token=IHjqkZ8%2F%2FFcnfDPxWTvJFOrulUAKfXFUkxHJSiTdlnjnX1G6AOuTiSl6%2BN05EzxTaJkcSsSyGh5a1q%2FACwWN0sDD%2FgwY5YdWu3ghDcH2wqm%2BJIcEh0qZqo%2BQFnXp65bvkLZnY7VO7HwZGzyrpMBlPhfRCQxwBbc6lJcSYuPf%2Fe8%3D&amount=10000&currency=IDR&frontCallbackUrl=https%3A%2F%2Fwww.payermax.com",
    "outTradeNo": "P1642410680681",
    "tradeToken": "T2024062702289232000001",
    "status": "PENDING"
  }
}

5. Obtaining the Result of Binding the Payment Method ​

Merchants can receive the result of binding the payment method through the notifyUrl address provided when binding the payment method. For the detailed result message, please refer to: Result Notifications API.

Example of notification parameters for successful binding of the wallet payment method:

json
{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "APPLY_SUCCESS",
    "data": {
        "channelNo": "TPC425300174064927201759000685",
        "completeTime": "2025-02-27T09:41:12.267Z",
        "country": "UN",
        "currency": "USD",
        "outTradeNo": "20250227174104451122388",
        "paymentDetails": [
            {
                "paymentMethodType": "WALLET",
                "targetOrg": "NAVERPAY",
                "paymentTokenID": "PMTOKEN20250227071843552050007000094"
            }
        ],
        "reference": "reference",
        "status": "SUCCESS",
        "thirdChannelNo": "mtjxuvedrz58345",
        "totalAmount": 10,
        "tradeToken": "T2025022709425329000091"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Success.",
    "notifyTime": "2025-02-27T09:41:12 +0000",
    "notifyType": "PAYMENT"
}

After the payment method is successfully bound, PayerMax will generate a paymentTokenID, which needs to be used for subsequent direct debits.

Example of notification parameters for failed binding of the wallet payment method:

json
{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "PAYMENT_FAILED",
    "data": {
        "channelNo": "TPC462800174064934688659000687",
        "completeTime": "2025-02-27T09:44:00.216Z",
        "country": "UN",
        "currency": "USD",
        "outTradeNo": "20250227174218727122389",
        "paymentDetails": [
            {
                "paymentMethodType": "WALLET",
                "targetOrg": "NAVERPAY"
            }
        ],
        "reference": "reference",
        "status": "FAILED",
        "thirdChannelNo": "dycbhzfsmz69480",
        "totalAmount": 10,
        "tradeToken": "T2025022709462829000092"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Provider failed to process.",
    "notifyTime": "2025-02-27T09:44:00 +0000",
    "notifyType": "PAYMENT"
}

6. Initiating a Auto Debit ​

Parameter description:

  • totalAmount: The transaction amount must be greater than 0;

  • integrate: Pass the fixed value Direct_Payment;

  • paymentDetail.mitType: The direct debit type, SCHEDULED is for periodic subscription, and UNSCHEDULED is for non-periodic auto debit;

  • paymentDetail.tokenForFutureUse: true/false, whether to generate a token for subsequent direct debits; for subsequent deductions, pass false or do not pass it;

  • paymentDetail.merchantInitiated: true/false, whether it is a transaction initiated by the merchant; for subsequent deductions, it is initiated by the merchant and the user does not need to participate, so pass the value as true.

  • paymentDetail.paymentTokenID: The Token returned by PayerMax after the binding method is successful.

For the API document of subsequent direct debits, please refer to the Direct API Payment API. The request addresses for different environments are as follows:

Example of subsequent debit request parameters for API mode wallet payment method:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T09:05:52.194+00:00",
  "appId": "bbd8d2639a7c4dfd8df7d005294390df",
  "merchantNo": "020113838535952",
  "data": {
    "outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
    "subject": "Direct Debit Title", // Title
    "totalAmount": 10, // Direct debit amount
    "country": "KR",
    "currency": "USD", // Direct debit currency
    "userId": "test1111", // User ID
    "language": "en",
    "reference": "test subscription",
    "frontCallbackUrl": "http://www.frontCallbackUrl.com",
    "notifyUrl": "http://www.notifyUrl.com",
    "integrate": "Direct_Payment", // Fixed value: Direct_Payment
    "expireTime": "1800",
    "terminalType": "WEB", // Terminal type: WEB, WAP or APP
    "osType": "ANDROID", // Operating system type: ANDROID or IOS
    "paymentDetail": {
      "paymentMethodType": "WALLET", // Required, payment method type
      "targetOrg": "NAVERPAY",
      "mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
      "tokenForFutureUse": false, // Required, set to true to generate paymentTokenID for subsequent direct debits
      "merchantInitiated": true, // false indicates user parameters are required; true indicates merchant-initiated direct debit without user participation
      "paymentTokenID": "PMTOKEN20230424072005899168200035002", // Token value returned to merchant by PayerMax after successful first direct debit
      "buyerInfo": {
            "firstName": "Deborah",
            "lastName": "Swinstead",
            "email": "your@gmail.com",
            "phoneNo": "0609 031 114",
            "address": "Test Address",
            "city": "Holden Hill",
            "region": "SA",
            "zipCode": "5088",
            "clientIp": "211.52.321.225",
            "userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
        }
    }
  }
}

Example of the Response:

json
{
    "msg": "Success.",
    "code": "APPLY_SUCCESS",
    "data": {
        "outTradeNo": "APIFOXDEV1745388079422",
        "tradeToken": "T2025042306527802000033",
        "status": "SUCCESS"
    }
}

7. Obtaining the Direct Debit Result ​

Whether it is binding the payment method or subsequent direct debits, after the deduction is successful or fails, PayerMax will notify the merchant of the deduction result, and the merchant can also actively query the direct debit result.

7.1 Obtaining the Payment Result Using a Callback ​

Merchants can receive the payment result through the notifyUrl address provided during payment. For the detailed notification message, please refer to: Result Notifications API.

Example of notification parameters for successful debit payment using wallet payment method:

json
{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "APPLY_SUCCESS",
    "data": {
        "channelNo": "TPC425300174064927201759000685",
        "completeTime": "2025-02-27T09:41:12.267Z",
        "country": "US",
        "currency": "USD",
        "outTradeNo": "20250227174104451122388",
        "paymentDetails": [
            {
                "paymentMethodType": "WALLET",
                "targetOrg": "NAVERPAY",
                "paymentTokenID": "PMTOKEN20250227071843552050007000094"
            }
        ],
        "reference": "reference",
        "status": "SUCCESS",
        "thirdChannelNo": "mtjxuvedrz58345",
        "totalAmount": 10,
        "tradeToken": "T2025022709425329000091"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Success.",
    "notifyTime": "2025-02-27T09:41:12 +0000",
    "notifyType": "PAYMENT"
}

Example of notification parameters for failed debit payment using wallet payment method:

json
{
    "appId": "d68f5da6a0174388821a64114c6b322c",
    "code": "PAYMENT_FAILED",
    "data": {
        "channelNo": "TPC462800174064934688659000687",
        "completeTime": "2025-02-27T09:44:00.216Z",
        "country": "US",
        "currency": "USD",
        "outTradeNo": "20250227174218727122389",
        "paymentDetails": [
            {
                "paymentMethodType": "WALLET",
                "targetOrg": "NAVERPAY"
            }
        ],
        "reference": "reference",
        "status": "FAILED",
        "thirdChannelNo": "dycbhzfsmz69480",
        "totalAmount": 10,
        "tradeToken": "T2025022709462829000092"
    },
    "keyVersion": "1",
    "merchantNo": "P01010118267336",
    "msg": "Provider failed to process.",
    "notifyTime": "2025-02-27T09:44:00 +0000",
    "notifyType": "PAYMENT"
}

After receiving the notification result, the correct code and message need to be responded to PayerMax. Otherwise, PayerMax will think that the merchant has not received the notification message normally and will retry the notification 6 times.

Example of Merchant Response Parameters:

json
{
  "msg": "Success",
  "code": "SUCCESS"
}

7.2 Obtaining the Payment Result Using a Query ​

For the API document of obtaining the payment result, please refer to the Transaction Inquiry API. The request addresses for different environments are as follows:

Example of request parameters for querying the auto debit result:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-17T07:51:15.597+00:00",
  "appId": "a0dddd1f622243cb9aa1b676e808b5f8",
  "merchantNo": "02021382719993",
  "data": {
    "outTradeNo": "P1642410680681"
  }
}

Wallet payment method debit result query response parameters:

json
{
  "msg": "Success.",
  "code": "APPLY_SUCCESS",
  "data": {
    "reference": "reference for query and callback return",
    "country": "SA",
    "totalAmount": 10,
    "outTradeNo": "P1642410680681",
    "currency": "USD",
    "channelNo": "DMCP000000000177005",
    "thirdChannelNo": "4ikqJ6ktEqyRawE1dvqb9c",
    "paymentCode": "2312121212",
    "tradeToken": "T2024062702289232000001",
    "completeTime": "2023-10-20T03:28:23.092Z",
    "paymentDetails": [
      {
        "paymentMethodType": "WALLET",
        "targetOrg": "NAVERPAY",
        "paymentTokenID": "PMTOKEN20250224063712195626335000250",
        "payAmount": 10,
        "exchangeRate": "1",
        "payCurrency": "USD"
      }
    ],
    "status": "SUCCESS",
    "resultMsg": ""
  }
}

8. Unbinding the Payment Method ​

After the user cancels the auto debit, the merchant needs to unbind the payment method for the user. For the API document of unbinding the payment method, please refer to removePaymentToken API. The request addresses for different environments are as follows:

Example of Request Parameters:

json
{
  "version": "1.5",
  "keyVersion": "1",
  "requestTime": "2022-01-22T10:00:00.500+08:00",
  "appId": "46153e2b787241ae8b01857bb087d1bd",
  "merchantNo": "010229810189301",
  "data": {
    "userId": "TEST",
    "paymentTokenID": "PMTOKEN20230424072005899168200035002",
    "removeReason": "remove"
  }
}

Example of the Response:

json
{
  "code": "APPLY_SUCCESS",
  "msg": "Success",
  "data": {
    "paymentTokenID": "PMTOKEN20230424072005899168200035002",
    "userId": "Test",
    "paymentTokenStatus": "Deleted"
  }
}

Released under the MIT License.

Copyright © 2023-present PayerMax
