GooglePay Periodic Subscription - PayerMax Manage Subscription Plans
This document describes the steps for integrating Google Pay with recurring subscription plans managed by PayerMax, including creating a subscription plan, activating a subscription plan, and receiving payment results.

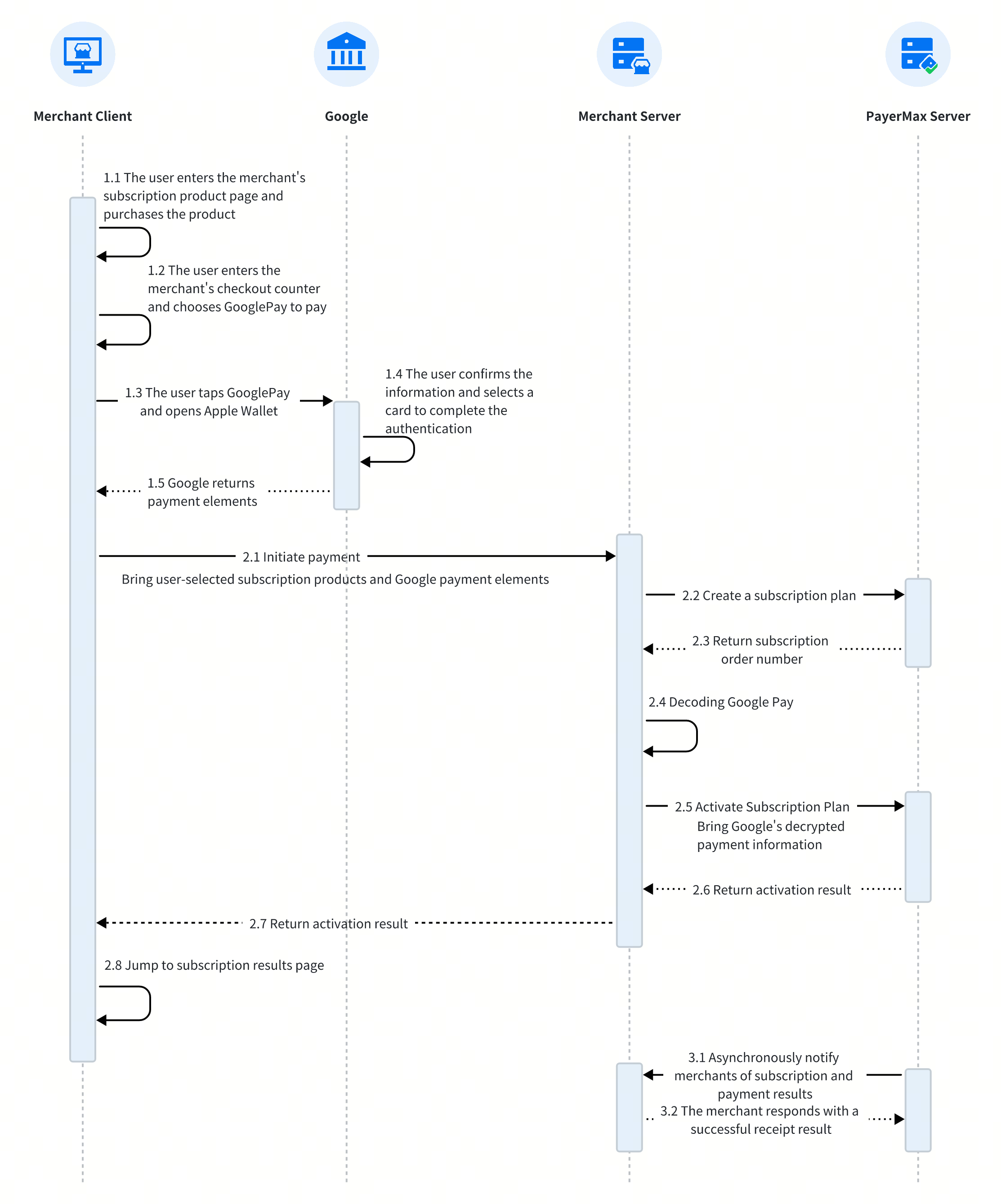

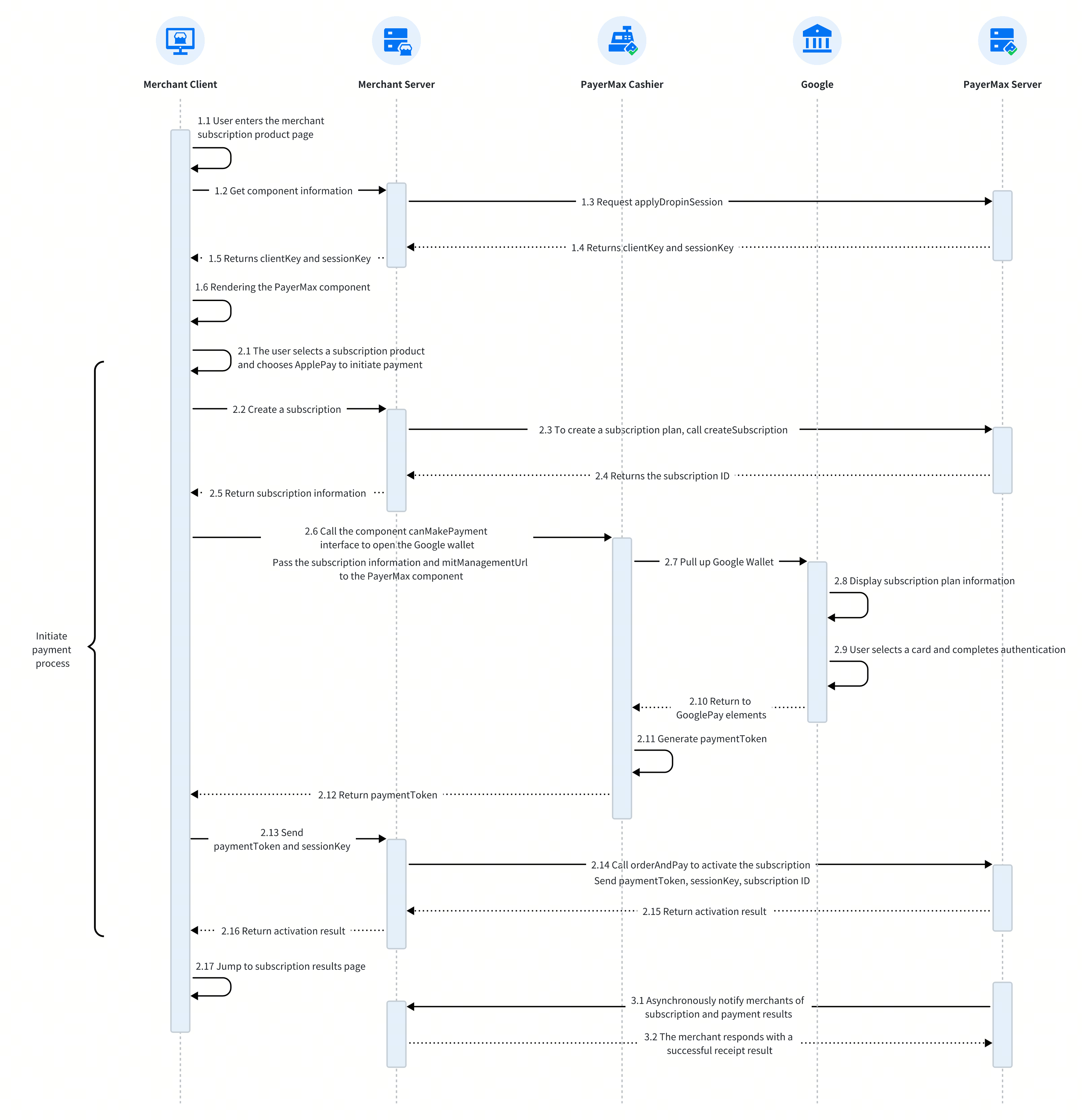

1. Front-End Interaction
Note:
In Cashier Mode, when PayerMax Manage Subscription Plans, the subscription plan details will be displayed at the PayerMax cashier; however, due to Google Pay restrictions, Google Pay will only display subscription plans for the European Economic Area (EEA), and payment button will be displayed in non-EEA regions.
2. Preparation Items
According to the guidance in Configuration and Signature , obtain the merchant self-service platform account, obtain the merchant appId and secret key, configure the asynchronous notification address, and configure the public key and private key.
3. Creating a Subscription Plan
The following are examples of API creation request responses for several types of subscription plans. For the complete API specification, please refer to the Create Subscription API. The request addresses for creating a subscription plan in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/subscriptionCreate
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/subscriptionCreate
3.1 Standard Subscription Plan
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2025-02-26T05:00:00+00:00",
"appId": "6666c8b036a24579974497c2f9a33333",
"merchantNo": "010213834784554",
"data": {
"subscriptionRequestId": "subscription100000000000001", // Required, merchant's unique ID for creating the subscription plan
"userId": "test10001", // Required, user ID
"language": "en", // Optional, language
"callbackUrl": "http://***.com/notifyUrl/subscription", // Required, notification URL for subscription and payment results
"subscriptionPlan": { // Required, subscription plan information
"subject": "subject", // Required, title
"description": "PMMAX First Periodic Payment", // Optional, description
"totalPeriods": 24, // Required, total number of periods
"periodRule": { // Required, payment rule
"periodUnit": "M", // Required, payment frequency: Monthly (M), Daily (D), Weekly (W), Yearly (Y)
"periodCount": 2 // Required, payment every 2 months
},
// Amount per payment period
"periodAmount": { // Required
"amount": 10.0, // Required
"currency": "USD" // Required
}
}
}
}3.2 n-day Trial Subscription Plan
Add the trialConfig configuration within subscriptionPlan. The following example shows input parameters for creating a 7-day trial subscription plan.
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2025-02-26T05:00:00+00:00",
"appId": "6666c8b036a24579974497c2f9a33333",
"merchantNo": "010213834784554",
"data": {
"subscriptionRequestId": "subscription100000000000001", // Required, merchant's unique ID for creating the subscription plan
"userId": "test10001", // Required, user ID
"language": "en", // Optional, language
"callbackUrl": "http://***.com/notifyUrl/subscription", // Required, notification URL for subscription and payment results
"subscriptionPlan": { // Required, subscription plan information
"subject": "subject", // Required, title
"description": "PMMAX First Periodic Payment", // Optional, description
"totalPeriods": 24, // Required, total number of periods
"periodRule": { // Required, payment rule
"periodUnit": "M", // Required, payment frequency: Monthly (M), Daily (D), Weekly (W), Yearly (Y)
"periodCount": 2 // Required, payment every 2 months
},
// Amount per payment period
"periodAmount": { // Required
"amount": 10.0, // Required, subscription amount
"currency": "USD" // Required, subscription currency
},
// Trial period parameters, optional. If `trialConfig` is included, the fields below are required.
"trialConfig": {
"trialAmount": { // Trial period amount
"amount": 4, // Amount must be >= 0. amount=0 indicates a free trial, amount>0 indicates a low-price trial.
"currency": "USD"
},
"trialDays": 7 // Trial days, must be greater than 0
}
}
}
}3.3 First n Periods Promotional Subscription Plan
Add the trialPeriodConfig configuration within subscriptionPlan. The following example shows input parameters for the first 2 periods promotional plan.
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2025-02-26T05:00:00+00:00",
"appId": "6666c8b036a24579974497c2f9a33333",
"merchantNo": "010213834784554",
"data": {
"subscriptionRequestId": "subscription100000000000001", // Required, merchant's unique ID for creating the subscription plan
"userId": "test10001", // Required, user ID
"language": "en", // Optional, language
"callbackUrl": "http://***.com/notifyUrl/subscription", // Required, notification URL for subscription and payment results
"subscriptionPlan": { // Required, subscription plan information
"subject": "subject", // Required, title
"description": "PMMAX First Periodic Payment", // Optional, description
"totalPeriods": 24, // Required, total number of periods
"periodRule": { // Required, payment rule
"periodUnit": "M", // Required, payment frequency: Monthly (M), Daily (D), Weekly (W), Yearly (Y)
"periodCount": 2 // Required, payment every 2 months
},
// Non-promotional period payment amount
"periodAmount": { // Required
"amount": 10.0, // Required, subscription amount
"currency": "USD" // Required, subscription currency
},
"trialPeriodConfig": { // Optional, promotional period configuration
"trialPeriodCount": 2, // Number of promotional periods
"trialPeriodAmount": { // Promotional period payment amount
"amount": 3.0, // Promotional period payment amount. An amount of 0 indicates the promotional period is free.
"currency": "USD" // Promotional period payment currency
}
}
}
}
}3.4 n-Day Trial + First n Periods Promotional Plan
Add both trialConfig and trialPeriodConfig configurations within subscriptionPlan. The following example describes a plan with a 7-day trial for 0.99 USD. After the trial ends, the first 2 periods are charged 3 USD each, and the remaining 22 periods are charged 10 USD each.
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2025-02-26T05:00:00+00:00",
"appId": "6666c8b036a24579974497c2f9a33333",
"merchantNo": "010213834784554",
"data": {
"subscriptionRequestId": "subscription100000000000001", // Required, merchant's unique ID for creating the subscription plan
"userId": "test10001", // Required, user ID
"language": "en", // Optional, language
"callbackUrl": "http://***.com/notifyUrl/subscription", // Required, notification URL for subscription and payment results
"subscriptionPlan": { // Required, subscription plan information
"subject": "subject", // Required, title
"description": "PMMAX First Periodic Payment", // Optional, description
"totalPeriods": 24, // Required, total number of periods
"periodRule": { // Required, payment rule
"periodUnit": "M", // Required, payment frequency: Monthly (M), Daily (D), Weekly (W), Yearly (Y)
"periodCount": 2 // Required, payment every 2 months
},
// Formal period payment amount
"periodAmount": { // Required
"amount": 10.0, // Required, subscription amount
"currency": "USD" // Required, subscription currency
},
// Promotional period configuration
"trialPeriodConfig": { // Optional, promotional period configuration
"trialPeriodCount": 2, // Number of promotional periods
"trialPeriodAmount": { // Promotional period payment amount
"amount": 3.0, // Promotional period payment amount. An amount of 0 indicates the promotional period is free.
"currency": "USD" // Promotional period payment currency
}
},
// Trial period parameters, optional. If `trialConfig` is included, the fields below are required.
"trialConfig": {
"trialAmount": { // Trial period amount
"amount": 0.99, // Amount must be >= 0. amount=0 indicates a free trial, amount>0 indicates a low-price trial.
"currency": "USD"
},
"trialDays": 7 // Trial days, must be greater than 0
}
}
}
}Example of the response parameters for creating a subscription plan:
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "subscription100000000000001", // The request order number sent by the merchant when creating the subscription plan
"subscriptionPlan": {
"subscriptionNo": "SUB20250202620949065212112", // The subscription order number generated by PayerMax
"subscriptionStatus": "INACTIVE", // Not activated
}
}
}4. Activating the Subscription Plan
After creating the subscription plan, the subscription plan is in an inactive state at this time. The user needs to complete a payment or authorization to activate the subscription plan before it can take effect. PayerMax provides 3 integration modes, namely the payment checkout mode, the API mode, and the front-end component mode, to complete the first payment or authorization.
Explanation of the activation request parameters:
If the subscription plan type is an n-day trial, the value of
totalAmountduring activation is 0; if the subscription plan type is preferential for the first n periods, the value oftotalAmountduring activation is the amount set for the preferential period; if the subscription plan type is an ordinary subscription, the value oftotalAmountduring activation is the fixed-period amount;The
currencyduring activation must be consistent with the currency in the subscription plan;The
userIdduring activation must be consistent with the userId in the subscription plan;The subscription order number
subscriptionNoreturned by PayerMax after creating the subscription plan must be sent during activation;The value of
subjectduring activation must be consistent with thesubjectin the subscription plan;When activating a subscription plan, merchants must provide PayerMax with their subscription plan information
subscriptionPlanand the user's subscription plan management URLmitManagementUrl. This URL allows users to access the user's subscription plan and perform other operations, such as canceling a subscription;When activating a subscription plan via the API, merchants must provide PayerMax with
Google's payment processing information; otherwise, activation will fail.
4.1 Activating the Subscription Plan in the Payment Cashier Mode
For the API document of activating the subscription plan in the payment checkout mode, please refer to the Payment Checkout - Place an Order API. The request addresses in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay
Example of the Request Parameters:
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2022-01-17T09:05:52.194+00:00",
"appId": "bbd8d2639a7c4dfd8df7d005294390df",
"merchantNo": "020113838535952",
"data": {
"outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
"subject": "Title of the subscription plan", // Must be consistent with the subject of the subscription plan
"totalAmount": 10, // Must be consistent with the subscription amount: 0 for "n-day trial"; promotional period amount for "first n periods discount"; periodic deduction amount for "regular subscription"
"country": "US",
"currency": "USD", // Must be consistent with the subscription currency
"userId": "test1111", // Must be consistent with the user ID of the subscription plan
"language": "en",
"reference": "test subscription",
"frontCallbackUrl": "https://[your domain name]/[your callback URL]",
"notifyUrl": "https://[your domain name]/[your notify URL]",
"integrate": "Hosted_Checkout", // Fixed value for activation: Hosted_Checkout
"expireTime": "1800",
"subscriptionPlan": { // Subscription information
"subscriptionNo": "SUB25022603353890000002003" // Subscription number to be activated
},
"mitManagementUrl": "https://[your domain name]/[your subscription management URL]",
"paymentDetail": {
"paymentMethodType": "GOOGLEPAY", // Required for activation, value is GOOGLEPAY
"mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debit, UNSCHEDULED for non-periodic direct debit
"tokenForFutureUse": true, // Required, value is true to generate paymentTokenID for subsequent direct debits
"merchantInitiated": false, // Required, false indicates not initiated by merchant (with user participation); true indicates initiated by merchant (no user participation required)
"buyerInfo": {
"firstName": "Deborah",
"lastName": "Swinstead",
"email": "your@gmail.com",
"phoneNo": "0609 031 114",
"address": "Test Address",
"city": "Holden Hill",
"region": "SA",
"zipCode": "5088",
"clientIp": "211.52.321.225",
"userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
}
}
}
}Example of the Response:
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
// PayerMax cashier address
"redirectUrl": "https://cashier-n-uat.payermax.com/static/processApiV2.html?tradeToken=T2025042306527802000033&integrate=DIRECT_API&country=UN&payRequestNo=20250423060120EP4366527897000250005&merchantId=010213834784554&merchantAppId=6666c8b036a24579974497c2f9a33333&token=902170aeaadb4621af8d9530398d0efa&orderLan=en&countryLan=en&strategyLan=LUBCO&pmaxLinkV=1",
"outTradeNo": "APIFOXDEV1745388079422",
"tradeToken": "T2025042306527802000033",
"status": "PENDING"
}
}4.2 Activating the Subscription Plan in Direct API Mode
Merchants need to obtain Google's payment elements from Google Wallet at the merchant's checkout counter. When calling PayerMax to activate the subscription plan, they need to decrypt the Google payment elements and send them to PayerMax to complete the subscription activation.
For merchants' self-integration of Google Pay, please refer to: Google Pay - Direct API Mode Integration.
For the API document of activating the subscription plan in API mode, please refer to the Direct API Payment API. The request addresses in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay
Example of Request Parameters:
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2022-01-17T09:05:52.194+00:00",
"appId": "bbd8d2639a7c4dfd8df7d005294390df",
"merchantNo": "020113838535952",
"data": {
"outTradeNo": "APIFOXDEV1745388079422", // Unique order number for merchant's order placement
"subject": "Title of the subscription plan", // Must be consistent with the subject of the subscription plan
"totalAmount": 10, // Must be consistent with the subscription amount: 0 for "n-day trial"; promotional period amount for "first n periods discount"; periodic deduction amount for "regular subscription"
"country": "US",
"currency": "USD", // Must be consistent with the subscription currency
"userId": "test1111", // Must be consistent with the user ID of the subscription plan
"language": "en",
"reference": "test subscription",
"frontCallbackUrl": "https://[your domain name]/[your callback URL]",
"notifyUrl": "https://[your domain name]/[your notify URL]",
"integrate": "Direct_Payment", // Fixed value for activation: Direct_Payment
"expireTime": "1800",
"subscriptionPlan": { // Subscription information
"subscriptionNo": "SUB25022603353890000002003" // Subscription number to be activated
},
"terminalType": "WEB", // Terminal type: WEB, WAP or APP
"osType": "ANDROID", // Operating system type: ANDROID or IOS
"paymentDetail": {
"paymentMethodType": "GOOGLEPAY", // Required, value is GOOGLEPAY
"mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic subscriptions, UNSCHEDULED for non-periodic direct debits
"tokenForFutureUse": true, // Required, value is true to generate paymentTokenID for subsequent direct debits
"merchantInitiated": false, // Required, false indicates user parameters are needed; true indicates merchant-initiated direct debit (no user participation required)
"googlePayDetails": { // Required, Google Pay order parameters
"authMethod": "PAN_ONLY", // Optional value: CRYPTOGRAM_3DS
"pan": "4111111111111111", // Card number
"expirationMonth": "12",
"expirationYear": "2029",
"cryptogram": "xxxxxxxxxxxx",
"eciIndicator": "5",
"description": "VISA 1234",
"cardNetwork": "VISA",
"cardHolderFullName": "zhangsan" // Required when authMethod is PAN_ONLY
},
"buyerInfo": {
"firstName": "Deborah",
"lastName": "Swinstead",
"email": "your@gmail.com",
"phoneNo": "0609 031 114",
"address": "Test Address",
"city": "Holden Hill",
"region": "SA",
"zipCode": "5088",
"clientIp": "211.52.321.225",
"userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
}
}
}
}Example of the Response:
Note:
When paymentDetail.googlePayDetails.authMethod=PAN_ONLY, the redirecUrl response parameter will return the 3DS verification address. When paymentDetail.googlePayDetails.authMethod=CRYPTOGRAM_3DS, the redirecUrl response parameter will not be returned.
// CRYPTOGRAM_3DS Response Parameters
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
"outTradeNo": "APIFOXDEV1745388079422",
"tradeToken": "T2025042306527802000033",
"status": "SUCCESS"
}
}// PAN_ONLY Response Parameters
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
// 3ds address
"redirectUrl": "https://cashier-n.payermax.com/index.html#/cashier/home?merchantId=020213827212251&merchantAppId=3b242b56a8b64274bcc37dac281120e3&country=ID&tradeToken=TOKEN20220117091121294138752&language=en&token=IHjqkZ8%2F%2FFcnfDPxWTvJFOrulUAKfXFUkxHJSiTdlnjnX1G6AOuTiSl6%2BN05EzxTaJkcSsSyGh5a1q%2FACwWN0sDD%2FgwY5YdWu3ghDcH2wqm%2BJIcEh0qZqo%2BQFnXp65bvkLZnY7VO7HwZGzyrpMBlPhfRCQxwBbc6lJcSYuPf%2Fe8%3D&amount=10000¤cy=IDR&frontCallbackUrl=https%3A%2F%2Fwww.payermax.com",
"outTradeNo": "APIFOXDEV1745388079422",
"tradeToken": "T2025042306527802000033",
"status": "SUCCESS"
}
}4.3 Activating the Subscription Plan in the Front-end Component Mode
For the integration of the front-end component, please refer to: Integration Process.
When activating the subscription plan in the front-end component mode, the merchant's server needs to call two API interfaces provided by PayerMax: Apply Drop-in Session API and Front-end Component Payment API. The request addresses of the Apply Drop-in Session interface in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/applyDropinSession
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/applyDropinSession
Merchant client integration example:
// Get clientKey and sessionKey
const data = await post("applyDropinSession", {
// Inform the server if it is a subscription payment?
...params
});
// Create Google Pay view
const googlepay = PMdropin.create('googlepay', {
clientKey: data.clientKey,
sessionKey: data.sessionKey,
theme: yourTheme,
payButtonStyle: data.yourPayButtonStyle,
sandbox: data.yourFrameEnv
});
// Mount to DOM
googlepay.mount('.frame-googlepay');
// Load event: Determine if loading is successful
googlepay.on('load', (res = {}) => {
const { code, msg } = res || {};
if (code === "SUCCESS") {
console.log('[merchant][load]success:', res);
} else {
console.log('[merchant][load]fail:', res);
}
});
// Listen for Google Pay button click event: This event can be used to listen when the user clicks the Google Pay button after selecting a subscription plan
googlepay.on('payButtonClick', (res) => {
// Call PayerMax createSubscription API to create a subscription plan
createSubscription();
// Disable the Google Pay button click status
googlepay.emit('setDisabled', true);
// Need to pass subscriptionPlan (subscription plan) and mitManagementUrl;
googlepay.emit('canMakePayment', {
// subscriptionPlan is required for periodic subscriptions
subscriptionPlan: {
"subject": "subject",
"description": "PMMAX Periodic First Deduction.",
"totalPeriods": 12,
"periodRule": {
"periodUnit": "M", // Deduction unit: M (Month), D (Day), W (Week), Y (Year)
"periodCount": 1 // Deduction once per 1 unit (e.g., once a month here)
},
"periodAmount": { // Fixed-period deduction amount
"amount": 404.35,
"currency": "SAR"
},
"firstPeriodStartDate": "2025-02-26T12:00:00+00:00",
"trialPeriodConfig": { // Promotional period rules
"trialPeriodCount": 1, // Number of promotional periods
"trialPeriodAmount": { // Deduction amount for promotional periods
"amount": 10,
"currency": "SAR"
}
}
},
mitManagementUrl: "http://www.xxx.com"
})
.then(res => {
console.log('canMakePayment', res);
const paymentToken = res?.data?.paymentToken;
data.paymentToken = paymentToken; // Encrypted token
if (paymentToken) {
// Call PayerMax orderAndPay API to initiate payment
orderAndPay();
} else {
// If the input parameters do not match the format, an error message will be thrown here
// Example of error res: { code: "MIT_PARAMS_VALIDATION_ERROR", message: "xxx is required" }
_payLog(JSON.stringify(res));
googlepay.emit('setDisabled', false);
}
})
.catch(err => {
// If verification fails, a clear error will be reported. TODO
console.log('canMakePayment catch', err);
googlepay.emit('payFail');
googlepay.emit('setDisabled', false);
_payLog(JSON.stringify(err));
});
});Example of Input Parameters for the Apply Drop-in Session Request:
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2022-01-17T09:05:52.194+00:00",
"appId": "3b242b56a8b64274bcc37dac281120e3",
"merchantNo": "020213827212251",
"data": {
"totalAmount": "10", // Must be consistent with the subscription amount: 0 for "n-day trial" and "n-day trial + first n periods discount"; promotional period amount for "first n periods discount"; periodic deduction amount for "regular subscription"; optional to leave blank
"mitType": "SCHEDULED", // Required. Value is SCHEDULED when PayerMax manages the subscription plan
"currency": "USD", // Required
"country": "SA", // Optional
"userId": "U10001", // Required. User ID
"componentList": [ // Required. Payment methods supported by the component
"GOOGLEPAY"
]
}
}Example of the Response:
{
"code": "APPLY_SUCCESS",
"msg": "Success.",
"data": {
"clientKey": "37114858239eur2384237r810482390",
"sessionKey": "bdsf8982348974hhf82934bf8239424"
}
}The request addresses of the front-end component payment interface in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/orderAndPay
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/orderAndPay
Example of Request Parameters:
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2022-01-17T09:05:52.194+00:00",
"appId": "bbd8d2639a7c4dfd8df7d005294390df",
"merchantNo": "020113838535952",
"data": {
"outTradeNo": "P1642410680681", // Unique order number for merchant's order placement
"subject": "Title of the subscription plan", // Must be consistent with the subject of the subscription plan
"totalAmount": 10, // Must be consistent with the subscription amount: 0 for "n-day trial" and "n-day trial + first n periods discount"; promotional period amount for "first n periods discount"; periodic deduction amount for "regular subscription"
"country": "UN",
"currency": "USD", // Must be consistent with the subscription currency
"userId": "test1111", // Must be consistent with the user ID of the subscription plan
"language": "en",
"reference": "test subscription",
"frontCallbackUrl": "https://[your domain name]/[your callback URL]",
"notifyUrl": "https://[your domain name]/[your notify URL]",
"integrate": "Direct_Payment", // Fixed value for activation: Direct_Payment
"expireTime": "1800",
"subscriptionPlan": { // Subscription information
"subscriptionNo": "SUB25022603353890000002003" // Subscription number to be activated
},
"mitManagementUrl": "http://www.xxx.com",
"terminalType": "WEB", // Terminal type: WEB, WAP or APP
"osType": "ANDROID", // Operating system type: ANDROID or IOS
"paymentDetail": {
"paymentToken": "CPT4f200d278f3a454b9e91c81edc641e2b", // Required for activation
"sessionKey": "bdsf8982348974hhf82934bf8239424", // Required for activation
"mitType": "SCHEDULED", // Required, MIT type: SCHEDULED for periodic direct debits, UNSCHEDULED for non-periodic direct debits
"tokenForFutureUse": true, // Required, value is true to generate paymentTokenID for subsequent direct debits
"merchantInitiated": false, // Required, false indicates not initiated by merchant (with user participation); true indicates initiated by merchant (no user participation required)
"buyerInfo": {
"firstName": "Deborah",
"lastName": "Swinstead",
"email": "your@gmail.com",
"phoneNo": "0609 031 114",
"address": "Test Address",
"city": "Holden Hill",
"region": "SA",
"zipCode": "5088",
"clientIp": "211.52.321.225",
"userAgent": "Mozilla/5.0 (iPad; CPU OS 18_4_1 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/22E252 [FBAN/FBIOS;FBAV/513.1.0.55.90;FBBV/735017191;FBDV/iPad13,16;FBMD/iPad;FBSN/iPadOS;FBSV/18.4.1;FBSS/2;FBID/tablet;FBLC/en_GB;FBOP/5;FBRV/737247184]"
}
}
}
}Example of the Response:
{
"code": "APPLY_SUCCESS",
"msg": "",
"data": {
"outTradeNo": "P1642410680681",
"tradeToken": "T2024062702289232000001",
"status": "SUCCESS"
}
}5. Obtaining the Activation Result of the Subscription Plan
Merchants can receive the subscription plan status change notification and the subscription deduction result through the callbackUrl address submitted when creating the subscription plan.
5.1 Obtaining the Subscription Plan Status Change Result
For the detailed notification message of the subscription plan status change notification, please refer to: Subscription Result Notification API.
Example of Notification Parameters for Successful Subscription Activation:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912",
"subscriptionStatus": "ACTIVE" // Successfully activated
}
}
}Example of Notification Parameters for Failed Subscription Activation:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912",
"subscriptionStatus": "ACTIVE_FAILED" // Activation failed
}
}
}Example of Merchant Response Parameters:
{
"msg": "Success",
"code": "SUCCESS"
}5.2 Obtaining the Subscription Deduction Result
If the created subscription plan is an ordinary subscription or preferential for the first n periods, the first period's deduction will be carried out simultaneously with the activation of the subscription plan. After the deduction is completed, PayerMax will notify the merchant of the deduction result; for the notification message of the subscription deduction result, please refer to: Payment Result Notification API .
Example of Notification Parameters for Successful Deduction:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION_PAYMENT",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"merchantNo": "P01010113865434",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912"
},
"subscriptionPaymentDetail": {
"subscriptionIndex": 1, // Deduction period number
"paymentStatus": "SUCCESS", // Current period order status
"periodStartTime": "2025-10-13T15:59:59+0000", // Current period start time
"periodEndTime": "2025-12-13T15:59:59+0000", // Current period end time
"payAmount": { // Deduction amount
"amount": 10,
"currency": "USD"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used to initiate refunds
"lastPaymentStatus": "SUCCESS", // Latest deduction result
"payTime": "2025-02-13T15:59:59+0000" // Payment time
}
}
}
}Example of Notification Parameters for Failed Deduction:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION_PAYMENT",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"merchantNo": "P01010113865434",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912"
},
"subscriptionPaymentDetail": {
"subscriptionIndex": 1, // Deduction period number
"paymentStatus": "FAILED", // Current period order status
"periodStartTime": "2022-10-13T15:59:59+0000", // Current period start time
"periodEndTime": "2022-12-13T15:59:59+0000", // Current period end time
"payAmount": { // Payment amount
"amount": 10,
"currency": "USD"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used for refund initiation
"lastPaymentStatus": "FAILED", // Latest deduction result
"payTime": "2022-12-13T15:59:59+0000", // Payment time
"errorCode": "xxxx", // Deduction failure code
"errorMsg": "xxxx" // Reason for deduction failure
}
}
}
}Example of Merchant Response Parameters:
{
"msg": "Success",
"code": "SUCCESS"
}5.3 Obtaining the Result of the Subscription Activation Request
Merchants can receive the result of the activation request through the notifyUrl address submitted when activating the subscription plan. For the detailed notification message, please refer to: Result Notifications API.
Example of the result for a successful activation request:
{
"appId": "d68f5da6a0174388821a64114c6b322c",
"code": "APPLY_SUCCESS",
"data": {
"channelNo": "TPC425300174064927201759000685",
"completeTime": "2025-02-27T09:41:12.267Z",
"country": "US",
"currency": "USD",
"outTradeNo": "20250227174104451122388",
"paymentDetails": [
{
"googlePayInfo": {
"cardIdentifierNo": "123456******1234"
},
"paymentMethodType": "GOOGLEPAY",
"paymentTokenID": "PMTOKEN20250227071843552050007000094"
}
],
"reference": "reference",
"status": "SUCCESS",
"thirdChannelNo": "mtjxuvedrz58345",
"totalAmount": 10,
"tradeToken": "T2025022709425329000091"
},
"keyVersion": "1",
"merchantNo": "P01010118267336",
"msg": "Success.",
"notifyTime": "2025-02-27T09:41:12 +0000",
"notifyType": "PAYMENT"
}Example of the result for a failed activation request:
{
"appId": "d68f5da6a0174388821a64114c6b322c",
"code": "PAYMENT_FAILED",
"data": {
"channelNo": "TPC462800174064934688659000687",
"completeTime": "2025-02-27T09:44:00.216Z",
"country": "UN",
"currency": "USD",
"outTradeNo": "20250227174218727122389",
"paymentDetails": [
{
"googlePayInfo": {
"cardIdentifierNo": "123456******1234"
},
"paymentMethodType": "GOOGLEPAY",
}
],
"reference": "reference",
"status": "FAILED",
"thirdChannelNo": "dycbhzfsmz69480",
"totalAmount": 10,
"tradeToken": "T2025022709462829000092"
},
"keyVersion": "1",
"merchantNo": "P01010118267336",
"msg": "Provider failed to process.",
"notifyTime": "2025-02-27T09:44:00 +0000",
"notifyType": "PAYMENT"
}Example of Merchant Response Parameters:
{
"msg": "Success",
"code": "SUCCESS"
}6. Subsequent Deductions by PayerMax
After a subscription plan is activated, PayerMax will deduct payments according to the pre-debit days specified when creating the subscription plan. If no pre-debit days are specified, PayerMax's default deduction rules will be used. For detailed deduction rules, please refer to Subscription Plan Rules. If all retry attempts for a particular period fail, PayerMax will terminate the subscription plan and notify the merchant.
Merchants can receive deduction results using the callback URL provided when creating the subscription plan. For detailed notification messages, please refer to: Result Notification API.
Example of the notification parameters for a successful deduction:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION_PAYMENT",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"merchantNo": "P01010113865434",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912"
},
"subscriptionPaymentDetail": {
"subscriptionIndex": 1, // Deduction period number
"paymentStatus": "SUCCESS", // Current period order status
"periodStartTime": "2025-10-13T15:59:59+0000", // Current period start time
"periodEndTime": "2025-12-13T15:59:59+0000", // Current period end time
"payAmount": { // Deduction amount
"amount": 10,
"currency": "USD"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used to initiate refunds
"lastPaymentStatus": "SUCCESS", // Latest deduction result
"payTime": "2025-02-13T15:59:59+0000" // Payment time
}
}
}
}Example of the notification for a failed deduction:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION_PAYMENT",
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"merchantNo": "P01010113865434",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912"
},
"subscriptionPaymentDetail": {
"subscriptionIndex": 1, // Deduction period number
"paymentStatus": "FAILED", // Current period order status
"periodStartTime": "2022-10-13T15:59:59+0000", // Current period start time
"periodEndTime": "2022-12-13T15:59:59+0000", // Current period end time
"payAmount": { // Payment amount
"amount": 10,
"currency": "USD"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used for refund initiation
"lastPaymentStatus": "FAILED", // Latest deduction result
"payTime": "2022-12-13T15:59:59+0000", // Payment time
"errorCode": "xxxx", // Deduction failure code
"errorMsg": "xxxx" // Reason for deduction failure
}
}
}
}7. Managing the Subscription Plan
After the subscription plan is activated, the subscription plan can be managed, such as querying the subscription deduction result and canceling the subscription plan. After the status of the subscription plan changes, PayerMax will notify the merchant of the status of the subscription plan.
7.1 Subscription Status Change Notification
Merchants can receive the result of the subscription plan status change through the callbackUrl address submitted when creating the subscription plan. For the detailed notification message, please refer to: Subscription Result Notification API.
Example of the notification parameters for the termination of the subscription plan:
{
"keyVersion": "1",
"merchantNo": "P01000116980333",
"msg": "Success.",
"notifyTime": "2023-04-24T09:44:40.761Z",
"notifyType": "SUBSCRIPTION"
"appId": "6c556bcd56c84652176b3c5abc389296",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912",
"subscriptionStatus": "TERMINATE"
}
}
}7.2 Canceling the Subscription Plan
Merchants can cancel the subscription plan. If the latest period is in the process of deduction, they must wait until the deduction for this period succeeds or fails before canceling the subscription plan. For the detailed API message, please refer to: Cancel Subscription API. The request addresses in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/subscriptionCancel
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/subscriptionCancel
Example of the request parameters for canceling the subscription plan:
{
"version": "1.5", // Version
"keyVersion": "1",
"requestTime": "2023-02-13T06:32:50.455+00:00",
"appId": "82ff47ea6c724a60b666e3ac0ea172dd",
"merchantNo": "P01010113865434",
"data": {
"subscriptionNo": "SUB20221212174716894496912" // PayerMax subscription number
}
}Example of the response parameters for canceling the subscription plan:
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912",
"subscriptionStatus": "CANCEL" // Cancelled
}
}
}7.3 Querying the Subscription Deduction Result
For the API document of querying the subscription deduction result, please refer to: Query Subscription API. The request addresses in different environments are as follows:
Prod Request Address: https://pay-gate.payermax.com/aggregate-pay/api/gateway/subscriptionQuery
Test Request Address: https://pay-gate-uat.payermax.com/aggregate-pay/api/gateway/subscriptionQuery
Example of the request parameters for querying the subscription plan:
{
"version": "1.5",
"keyVersion": "1",
"requestTime": "2023-02-13T06:32:50.455+00:00",
"appId": "82ff47ea6c724a60b666e3ac0ea172dd",
"merchantNo": "P01010113865434",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP", // Either subscriptionNo or requestId must be provided.
"subscriptionNo": "SUB20221212174716894496912" // Either subscriptionNo or requestId must be provided.
}
}Example of the response parameters for querying the subscription plan:
{
"msg": "Success.",
"code": "APPLY_SUCCESS",
"data": {
"subscriptionRequestId": "requestMWRkgX5iHaTmf45ePdEP",
"merchantNo": "P01010113865434",
"userId": "10003",
"subscriptionPlan": {
"subscriptionNo": "SUB20221212174716894496912",
"subscriptionStatus": "ACTIVE" // Subscription status
},
"subscriptionPaymentDetails": [
{
"subscriptionIndex": 0, // Deduction period: 1st period
"paymentStatus": "SUCCESS", // Current period order status
"periodStartTime": "2025-01-13T15:59:59+0000", // Current period start time
"periodEndTime": "2025-02-13T15:59:59+0000", // Current period end time
"payAmount": { // Payment amount
"amount": 100,
"currency": "SAR"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used for refund initiation
"lastPaymentStatus": "SUCCESS", // Latest deduction result
"payTime": "2025-01-12T15:59:59+0000" // Payment time
}
},
{
"subscriptionIndex": 1, // Deduction period: 2nd period
"paymentStatus": "PENDING", // Current period order status
"periodStartTime": "2025-02-13T15:59:59+0000", // Current period start time
"periodEndTime": "2025-03-13T15:59:59+0000", // Current period end time
"payAmount": { // Payment amount
"amount": 100,
"currency": "SAR"
},
"paymentMethodType": "GOOGLEPAY",
"cardOrg": "VISA",
"lastPaymentInfo": {
"tradeToken": "T20221212174800970116912", // Payment order number; tradeToken can be used for refund initiation
"lastPaymentStatus": "FAILED", // Latest deduction result
"payTime": "2025-02-12T15:59:59+0000", // Payment time
"errorCode": "xxxx", // Deduction failure code
"errorMsg": "xxxx" // Reason for deduction failure
}
}
]
}
}
